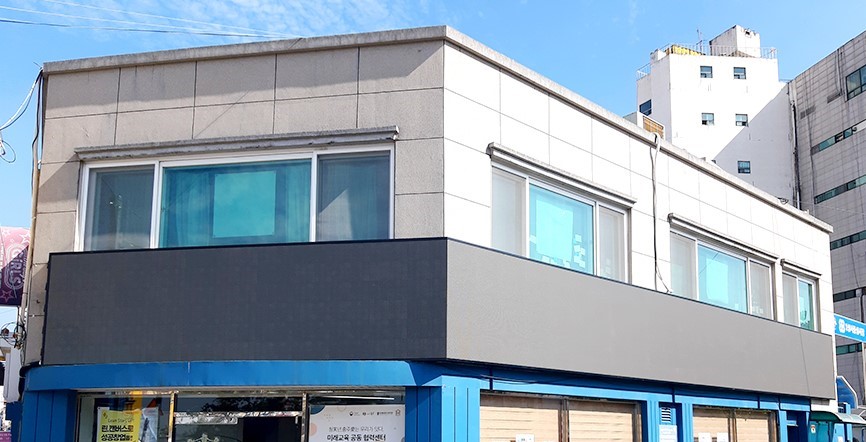

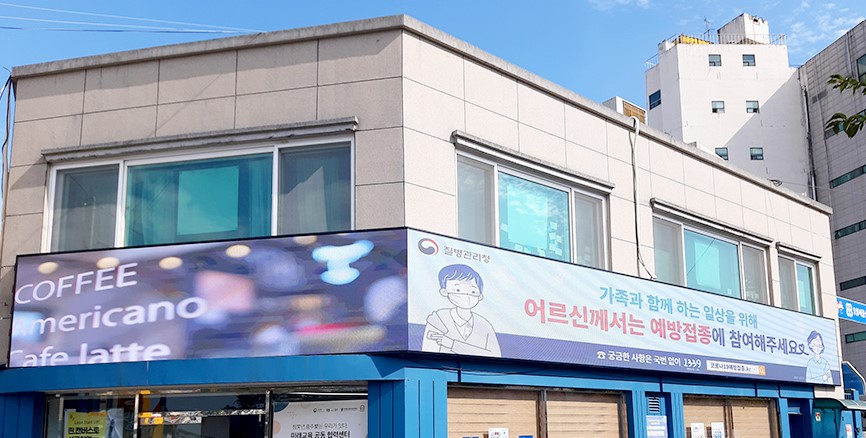

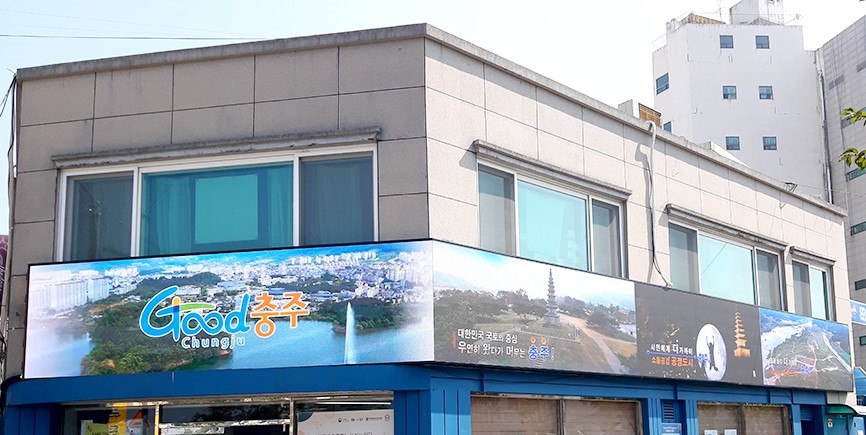

ChungJu,South Korea(February 2022)PIXINSIDE provides a series of outdoor solid installation products for P3.91mm, a famous pedestrian street in Chungju, South Korea. The corner arc of the building wall of the project uses a 45 degree corner cutting Angle design for the cabinet. Ensure the whole wall to form a long strip banner screen to achieve the scrolling effect of the screen.
The full screen size is (W)18,000x(H)1,500mm, the cabinet size is (W)1,000x(H)1,500mm, a total of 17 units, using NATIONSTAR copper wire and ICN2153. White balance brightness up to 6,700nit, A5s Nova receiving card, transmit card MCTRL 4K. The module adopts high-precision die-cast aluminum, compared with the ordinary plastic bottom module, to ensure that there will be no major deviation in accuracy due to expansion and contraction, and to ensure the stability of the display screen during long-term use. At the same time, the module adopts the (W)500x(H)250mm large size design, reducing the unnecessary outdoor display joint accuracy problem.
Features:- High precision die-cast aluminum module
- Ensures efficient heat dissipation at high temperatures
- Perform front and rear maintenance
- High stability IC
Link:For more information about this product, please refer to

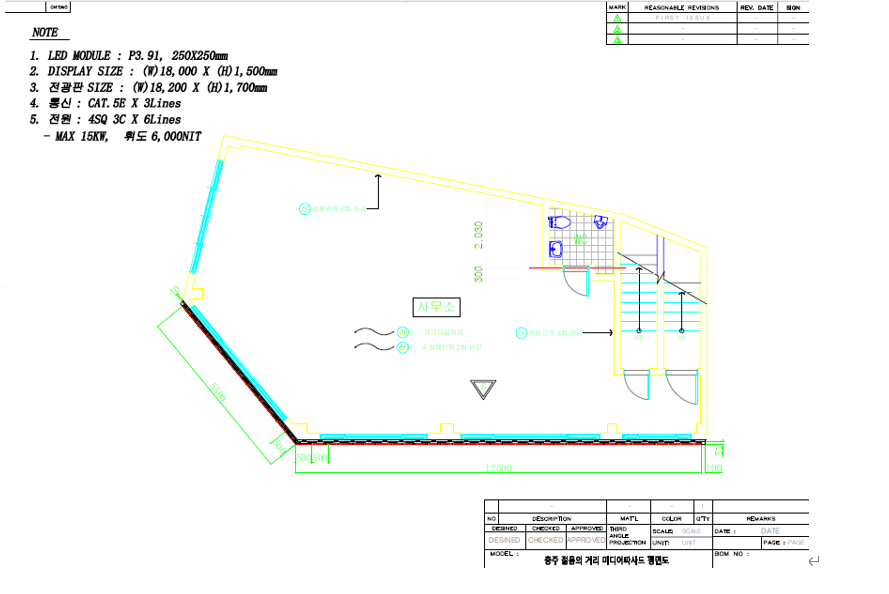

https://pixinside-media.com/products/%E3%80%90oa02%E3%80%91outdoor-high-end-energy-savingled-dispiayDesign drawing:
Cabinet drawing:

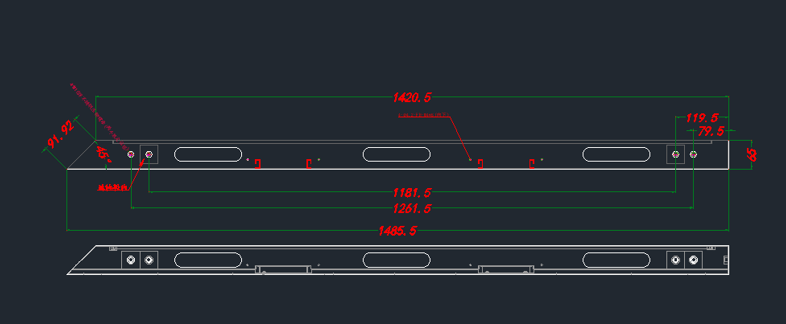

45 degree cutting Angle design:

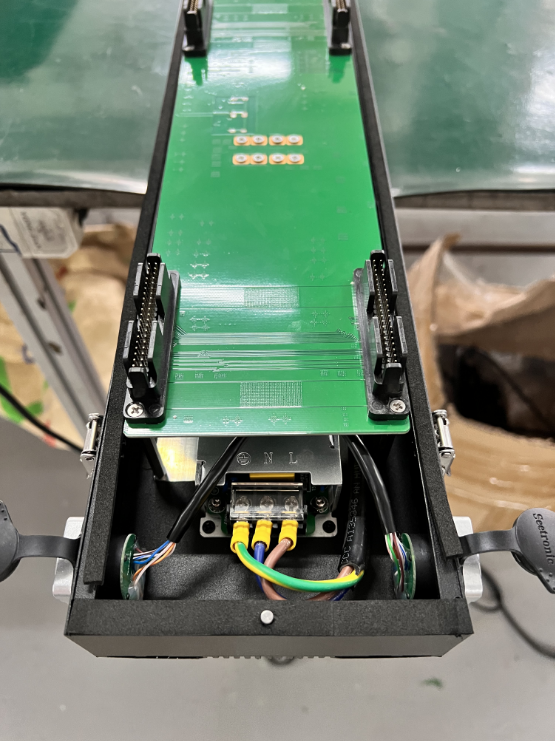

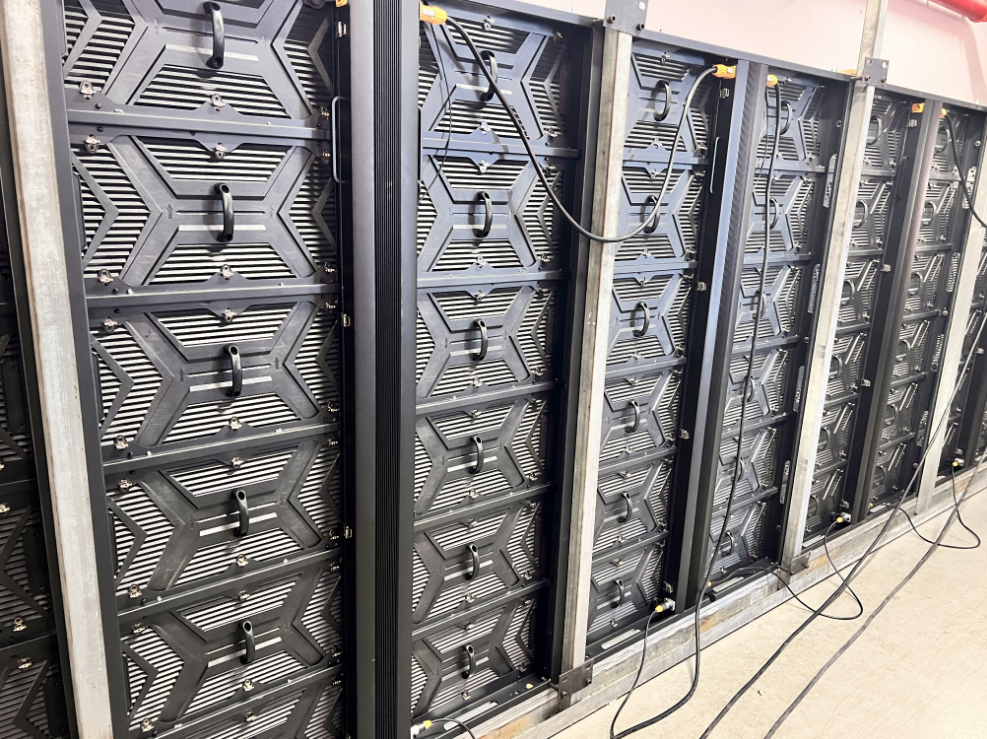

Cabinet back:

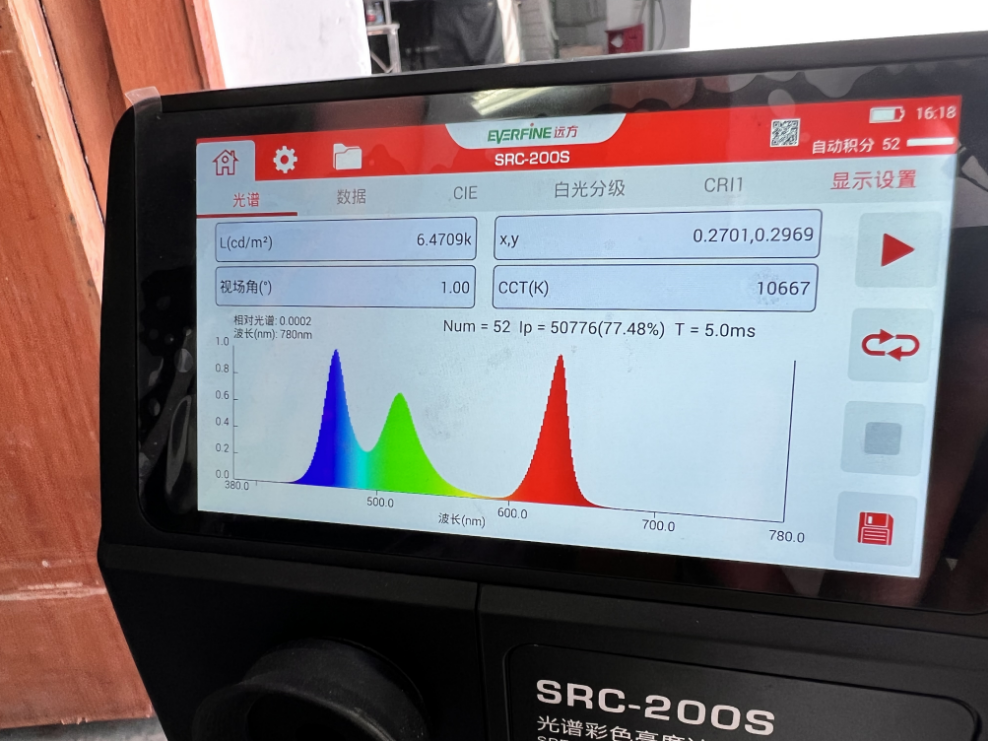

Brightness:As shown in the figure, the highest brightness is 6470.9nit
Delivery case:
