Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

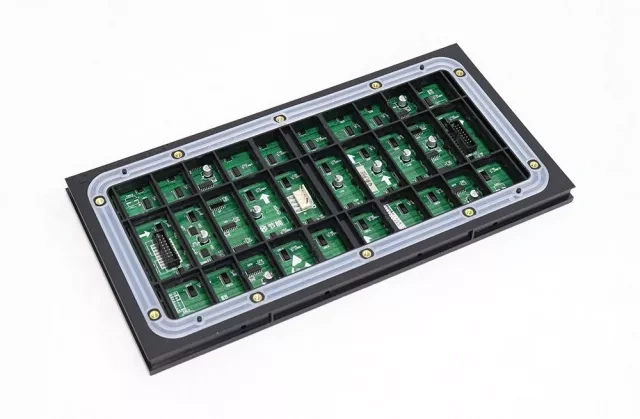

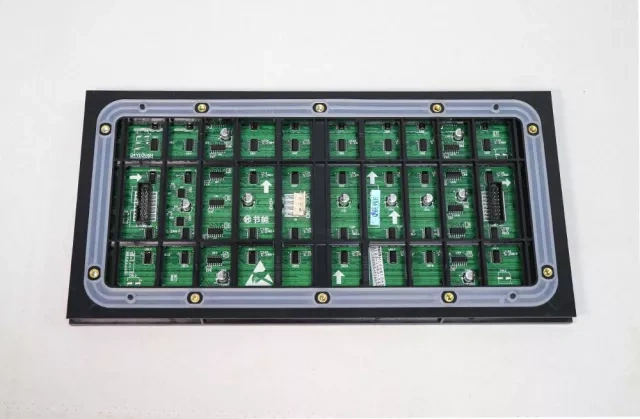

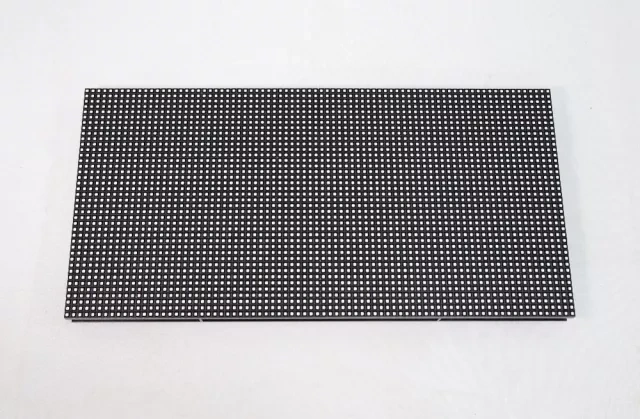

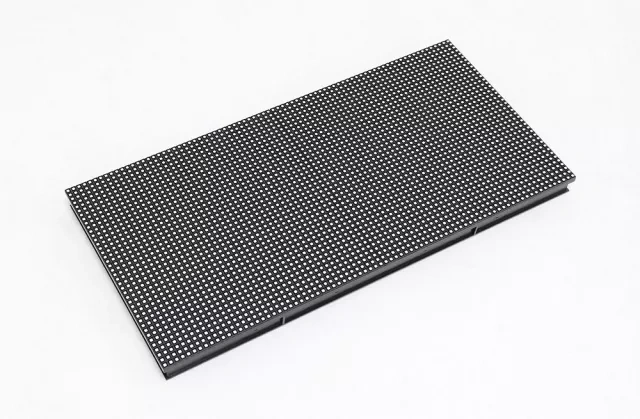

P4 320x160mm Outdoor LED Wall Screen Module Parameter:
| LED Lamp Specification | |||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | ||
| Red | SMD2525 | 450-600mcd | 120° | 620-625nm | 25℃,20mA | ||
| Green | 1000-1400mcd | 120° | 516-530nm | 25℃,20mA | |||
| Blue | 200-400mcd | 120° | 465-475nm | 25℃,20mA | |||
| Module Parameter | |||||||
| Pixel Pitch | 5mm | ||||||
| Pixel Configuration | SMD2727 | ||||||
| Density | 62,500 pixels/㎡ | ||||||
| Module Resolution | 64pixel(L) * 32pixel(H) | ||||||
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | ||||||
| Driving Mode | Constant current, 1/10 duty | ||||||
| Module Mask | Pure black mask---high contrast screen | ||||||
| Electricity Parameter | |||||||
| Optical Ratings | |||||||
| Brightness | ≥5,500 cd/㎡ | ||||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | ||||||
| Best Viewing Distance | ≥4m | ||||||
| Gray Grade | 14 bit | ||||||
| Display Color | 4.4 trillion colors | ||||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | ||||||
| Max. Power Consumption | 46W | ||||||
| Control System | |||||||
| Frame Frequency | 60Hz | ||||||
| Refresh Frequency | ≥1920Hz | ||||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||||
| Control Distance | 100m(Ethernet cable); | ||||||
| 20KM(optical fiber cable) | |||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | ||||||
| Color Temperature | 5000—9300 adjustable | ||||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | ||||||
| Reliability | |||||||
| Working Temperature | -20～+60 ºC | ||||||
| Storage Temperature | -30～+70 ºC | ||||||
| Working Humidity | 10%～90% RH | ||||||
| Lifetime | 100,000 hours | ||||||
| MTBF | 5000 hours | ||||||
| Continuous Operating Time | ≥72 hours | ||||||
| Protection Grade | IP65 | ||||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||||
Product Description
Optimized Solution for Professional Indoor Display Installations
This P5 320x160mm Indoor LED Display Module addresses the requirements of corporate, retail, and event environments demanding high-definition visuals at close viewing distances. Designed for system integrators and businesses seeking precise customized led display solutions, it supports video walls and modular signage configurations. Its standard 320mm by 160mm dimensions facilitate scalable integration, making it suitable for fixed and rental installations. This solution streamlines deployment while meeting the operational needs of led signage for business environments aiming to enhance indoor visual communications with dependable hardware.
Advanced Technical Specifications Ensure Visual Excellence
Featuring a 5mm pixel pitch with SMD2727 LEDs, the module delivers a pixel density of 62,500 pixels per square meter, ensuring sharp image definition. The pure black mask design enhances contrast ratios, complemented by up to 5,500 cd/㎡ brightness and a 120-degree viewing angle both horizontally and vertically. The constant current 1/10 duty driving method stabilizes color performance and supports a 100,000-hour lifespan under IP65-rated protection. Extensive quality control through 72-hour aging tests ensures minimal pixel failure and consistent color accuracy. These measurable attributes position the module as a technically robust option among best led signage in controlled indoor environments.
Versatile Industry Applications Deliver Tangible Business Returns
This LED module operates effectively across multiple industry sectors including retail storefronts, corporate lobbies, exhibition booths, educational institutions, and conference venues. Its compatibility with modular video wall systems allows for high-impact advertising, branding, and information display. Incorporating this product as customized led signage or part of a solution for wholesale led signage enables enterprises to optimize communication workflows, improving engagement and ROI by leveraging vibrant, reliable indoor displays designed for continuous operation.
Product Advantages
System Design and Modular Integration Benefits
The P5 320x160mm Indoor LED Display Module incorporates a standardized form factor enabling effortless assembly into varied cabinet sizes, facilitating scalable and flexible installations. Its modular design supports easy maintenance and fast replacement, critical for rental and permanent indoor setups. The pure black mask and precise pixel arrangement contribute to superior contrast and image fidelity, distinguishing it within the competitive market for customized led display and led signage for sale. Additionally, compliance with IP65 standards enhances protection in indoor environments with nuanced ambient conditions, aligning with stringent system integration requirements.
Operational Performance and User-Centric Reliability
This module ensures stable color accuracy and minimal visual degradation through its constant current driving technology and proven long lifespan exceeding 100,000 hours. The high brightness and expansive viewing angle accommodate diverse indoor lighting conditions and audience positions, optimizing user experience in professional settings. With rigorous pre-shipment aging processes, the product offers reliable uptime and straightforward installation, contributing significantly to the overall value proposition for businesses seeking resilient best led signage and scalable wholesale led signage options.
Use Scenarios
Retail Environments and Corporate Branding Deployments
In retail spaces and corporate lobbies, the P5 320x160mm module functions as a high-visibility platform for dynamic advertising and branded messaging. Its technical advantages, including crisp resolution and enduring brightness, facilitate consistent engagement with target audiences. This module’s compact size and modular flexibility integrate seamlessly into video walls that streamline content management within store or lobby environments. The solution’s IP65 rating and color stability aid compliance with indoor ambient lighting standards, making it an efficient choice for led signage for business applications focused on enhancing customer experience and reinforcing brand presence.
Event and Exhibition Venue Visual Installations
For trade shows, conferences, and rental event applications, this LED module provides flexible configuration options adaptable to temporary or semi-permanent setups. Its robust design and quality-tested reliability underpin performance consistency across diverse events where visual impact and operational uptime are crucial. The module supports rapid assembly and disassembly workflows while delivering superior image fidelity in confined indoor environments. As part of a customized led signage strategy, it enables event organizers and system integrators to meet specific venue requirements, offering a scalable solution compatible with comprehensive control systems used in wholesale led signage deployments.
